kafka之partition分配机制

partition分配机制

consumer 提供的两种不同 partition 分配策略,可以通过 partition.assignment.strategy 参数进行配置,默认情况下使用的是 org.apache.kafka.clients.consumer.RangeAssignor,Kafka 中提供另一种 partition 的分配策略 org.apache.kafka.clients.consumer.RoundRobinAssignor

RangeAssignor 分配模式

假设 topic 的 partition 数为 numPartitionsForTopic,group 中订阅这个 topic 的 member 数为 consumersForTopic.size(),首先需要算出两个值:

numPartitionsPerConsumer = numPartitionsForTopic / consumersForTopic.size():表示平均每个 consumer 会分配到几个 partition;

consumersWithExtraPartition = numPartitionsForTopic % consumersForTopic.size():表示平均分配后还剩下多少个 partition 未分配。

分配的规则是:对于剩下的那些 partition 分配到前 consumersWithExtraPartition 个 consumer 上,也就是前 consumersWithExtraPartition 个 consumer 获得 topic-partition 列表会比后面多一个。

在上述的程序中,举了一个例子,假设有一个 topic 有 7 个 partition,group 有5个 consumer,这个5个 consumer 都订阅这个 topic,那么 range 的分配方式如下:

consumer 0:start: 0, length: 2, topic-partition: p0,p1;
consumer 1:start: 2, length: 2, topic-partition: p2,p3;
consumer 2:start: 4, length: 1, topic-partition: p4;
consumer 3:start: 5, length: 1, topic-partition: p5;
consumer 4:start: 6, length: 1, topic-partition: p6

RoundRobinAssignor分配模式

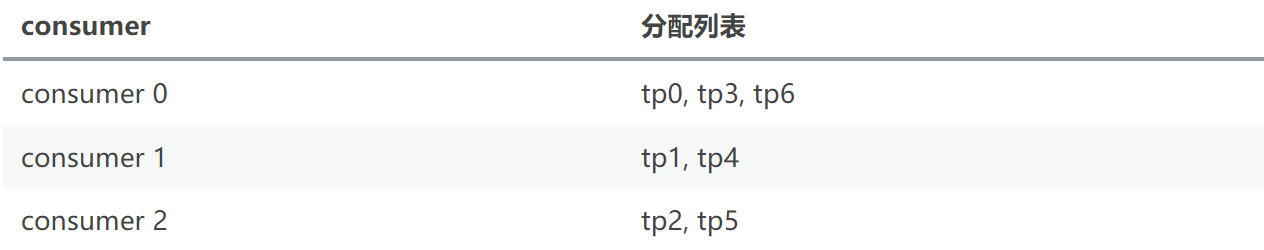

roundrobin 的实现原则,简单来说就是:列出所有 topic-partition 和列出所有的 consumer member,然后开始分配,一轮之后继续下一轮,假设有有一个 topic,它有7个 partition,group 有3个 consumer 都订阅了这个 topic,那么其分配方式为:

20220406200003

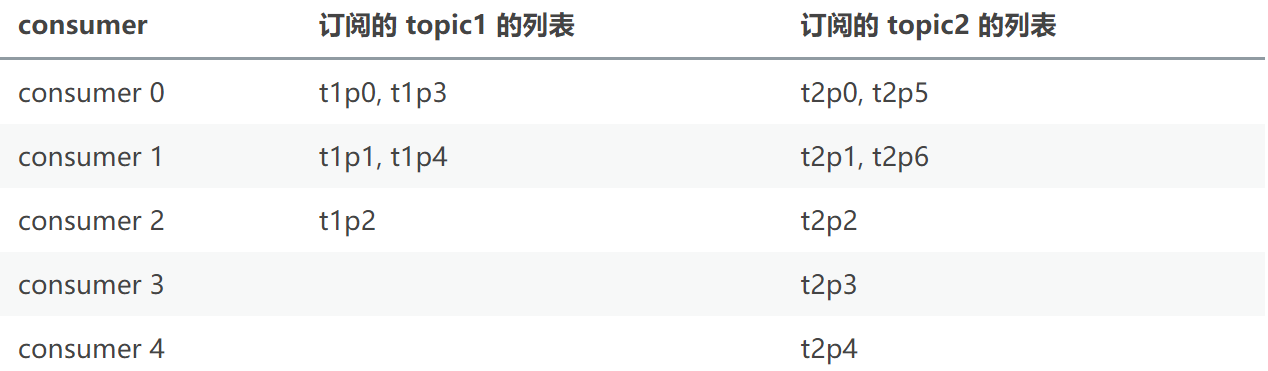

对于多个 topic 的订阅,将有两个 topic,一个 partition 有5个,一个 partition 有7个,group 有5个 consumer,但是只有前3个订阅第一个 topic,而另一个 topic 是所有 consumer 都订阅了,那么其分配结果如下:

20220406200004
